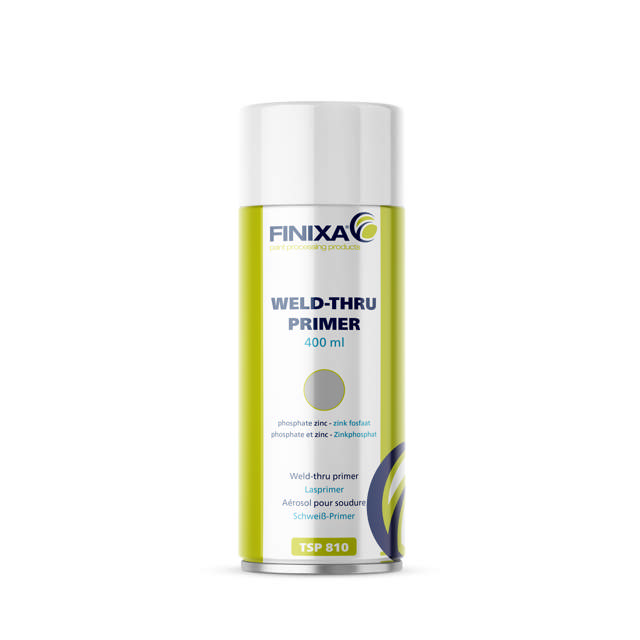

TSP 810 - Weld-thru primer phosphate zinc 400ml

TSP 810
An alkyd resin-based anti-corrosion solution specially crafted for SPOT, MIG, and TIG welding applications. Formulated with a high concentration of zinc in the dry film, this primer accelerates the welding process with minimal impact on the weld. Its excellent adhesive properties ensure effective protection before and after welding. Plus, this Zinc Phosphate primer is compatible with most lacquer systems, providing a reliable foundation for a range of applications.

Key features

    • Alkyd resin-based zinc-phosphate primer offers rust protection for welding applications.

Product details

Brand
Finixa
Number
TSP 810
Colour
grey
Material
zinc
Sales unit
1
Units for outer box
12
Units for pallet
672
Storing condition
dark
Dry storage
yes
Freezing resistant
yes
Maximum storing temperature
25 °C
Minimum Order Quantity
12
1K product
yes
2K product
no
Anti-corrosion
yes
Base ingredient(s)
talcum titanium dioxide carbon black alkyd resin
Coverage
4 m²/L
Dry layer film thickness
20 µm
Gloss level
0 %
Lead-free
yes
Particle size
30 µm
Pressure
3.2 bar
Propellant
butane propane
Recommended number of layers
2-3
Solid content
20.4 g/ml
Solvents
yes
VOC
600 g/L
Volume
0.4 L

Application

TSP 810 application

Directions for use:
  1. Surface Preparation: Clean the surface of dirt, grease, and rust. Sanding may be required for optimal adhesion.
  2. Shake Well: Shake the can vigorously for at least 2 minutes after the mixing ball starts rattling.
  3. Test Spray: Apply a test patch to ensure compatibility and desired results.
  4. Application: Hold the can 20cm – 30cm (8-12 inches) from the surface and spray a thin, even coat.
  5. Drying Time: Allow to dry for at least 10 minutes before welding.
  6. Weld: Perform your welding operations. The primer does not need to be removed prior to welding.
  7. Nozzle Maintenance: Invert the can and spray for 2-3 seconds to clear the nozzle.
