    3. TSP 530 - Weld-thru primer copper 400ml

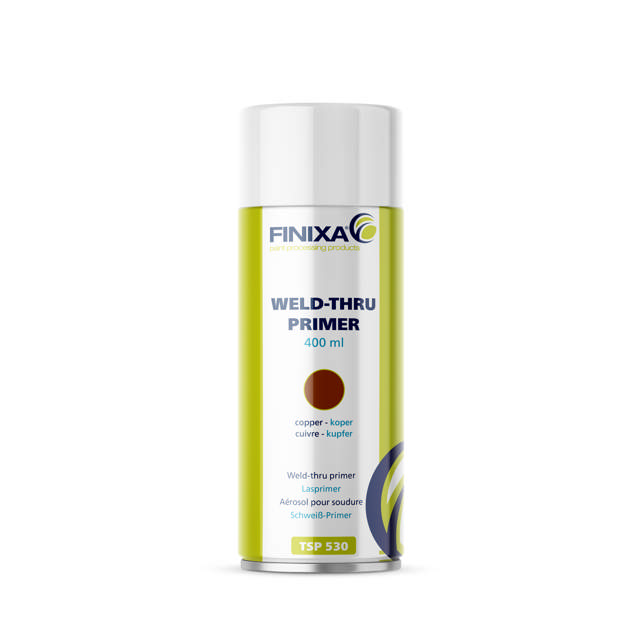

    TSP 530 - Weld-thru primer copper 400ml

    TSP 530

    The ultimate solution for SPOT, MIG & TIG welding applications. This acrylate resin-based primer boasts a high concentration of copper in its dry film, ensuring robust rust protection. With a fast-drying formulation, it accelerates the welding process while maintaining excellent adhesive properties. This versatile primer can be applied both before and after welding, and it's compatible with most lacquer systems for easy painting.

    Key features

      • Acrylate resin based copper anti-corrosion primer offers rust protection for SPOT, MIG & TIG welding applications.
      • High concentration of copper in the dry film in a fast drying formulation to speed up the welding process with limited impact on the weld.
      • Has excellent adhesive properties.
      • The product can be used before and after welding.
      • Copper primer can be painted over with most types of lacquer systems.

    Product details

    Brand
    Finixa
    Number
    TSP 530
    Colour
    brown
    Weight (kg)
    0.379
    Material
    copper
    Dry storage
    yes
    Maximum storing temperature
    25 °C
    Storing condition
    dark
    Freezing resistant
    yes
    Units for outer box
    6
    Units for pallet
    672
    1K product
    yes
    2K product
    no
    Anti-corrosion
    yes
    Base ingredient(s)
    acrylic resin
    Coverage
    4 m²/L
    Dry layer film thickness
    25 µm
    Gloss level
    0 %
    Lead-free
    yes
    Particle size
    45 µm
    Pressure
    3.7 bar
    Propellant
    butane; propane
    Protection
    Copper
    Recommended number of layers
    1-2
    Solid content
    9.6 g/ml
    Solvents
    yes
    Type
    aerosol
    UV
    No
    VOC
    549 g/L
    Volume
    0.400 L
    Workable surface state
    dry

    Application

    TSP 530 Application - Directions for Use:

    1. Surface Preparation: Clean the surface of dirt, grease, and rust. Sanding may be required for optimal adhesion.
    2. Shake Well: Shake the can vigorously for at least 2 minutes after the mixing ball starts rattling.
    3. Test Spray: Apply a test patch to ensure compatibility and desired results.
    4. Application: Hold the can 8-12 inches from the surface and spray a thin, even coat.
    5. Drying Time: Allow to dry for at least 10 minutes before welding.
    6. Weld: Perform your welding operations. The primer does not need to be removed prior to welding.
    7. Nozzle Maintenance: Invert the can and spray for 2-3 seconds to clear the nozzle.
