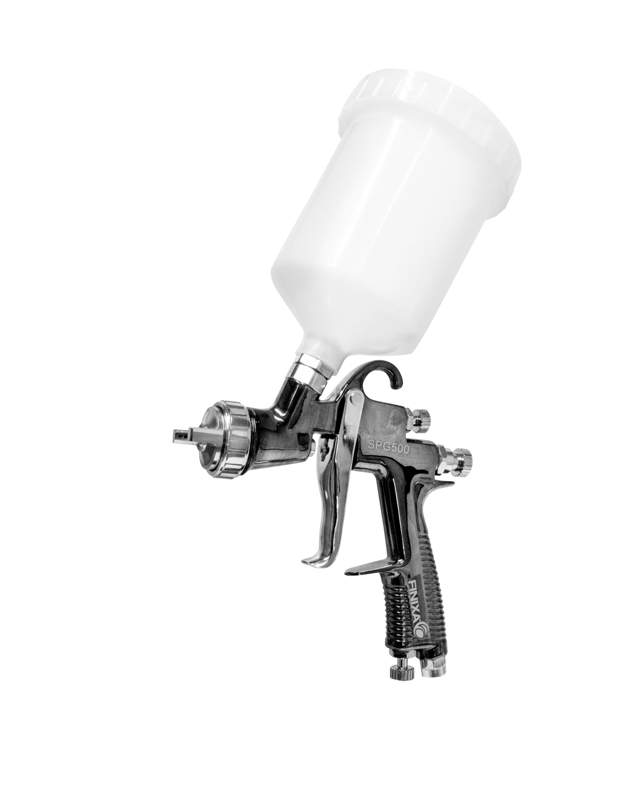

SPG 500 - Spray gun CC 500 (black chrome) - without kit
SPG 500
With minimal overspray and maximum transfer efficiency, it features LVLP technology, achieving over 74% effective transfer efficiency. The lightweight anodized aluminum body is compatible with both water-based and solvent-based paints. The spray gun requires an airfeed pressure between 1.8 and 2.2 bar and comes with a 500 ml cup (also available separately as spare part SPG 500C). Note that the nozzle set is to be purchased separately (not included).
Key features
-
- • Ergonomic grip.
-
- • Minimal overspray, maximum transfer efficiency.
-
- • LVLP technology: over 74% effective transfer efficiency.
-
- • Lightweight anodized aluminium body, available separately: stainless steel needle set.
-
- • Can be used for water-based and solvent-based paints.
-
- • Required airfeed pressure: between 1.8 and 2.2 bar.
-
- • Incl. cup 500 ml (also available as spare part SPG 500C).
-
- • Nozzle set to be puchased seperately (not included).
Product details
- Colour
- black
- Dry storage
- yes
- Freezing resistant
- yes
- Material
- annodized aluminium
- Number
- SPG 500
- Air feed pressure
- 1.8 bar
- Feed-type
- gravity
- Needle seal type
- rubber
- Spray distance
- 18.5 cm
- Transfer efficiency
- 74 %
- Use with paint type
- water-based solvent-based
- Sales unit
- 1
- Units for outer box
- 10
- Units for pallet
- 120
- Weight
- 0.479
- Product weight
- 479 g
- Pattern width
- 16 ; 18 ; 20 ; 22 mm
- Air consumption
- 195 ; 230 ; 250 ; 290 L/min
- Possible nozzle orifice
- 1,3 ; 1,5 ; 1,8 ; 2,0 ; 2,5 mm
Application
-
SPG application - Directions for use
- Clean and degrease spray gun before first use, this way you make sure there is no contamination inside when you start using the product.
- Check nozzle size with paint manufacturer technical recommendations, switch when needed.
- Attach spray cup clockwise on spray gun.
- Put desired coating in the spray cup.
- Close lid.
- Apply air pressure according to technical recommendations.
- Spray coating.
- After finishing work, always make sure to disassemble and clean the spray gun using proper cleaning agents according the used coating.
- Blow dry spray gun after cleaning.
- Store in clean conditions until next use.
